Listado de tamaños de los registros de acceso de yeso reforzado con fibra de vidrio
y de cemento con fibra de vidrio

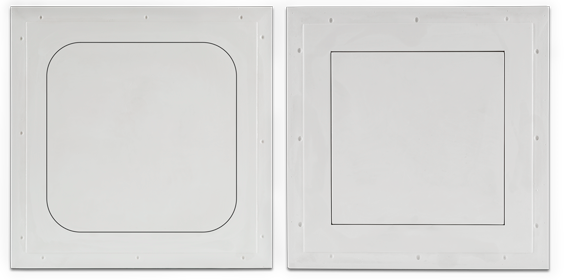

TAPA SUELTA
TAPA SUELTA - ESQUINAS CURVAS (RC-58xxxx)
TAPA SUELTA - ESQUINAS CUADRADAS (SQ-58xxxx)
Artículo nro.
Tamaño
de tapa
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
RC o SQ-580006
6" × 6"
12" × 12"
3.9
RC o SQ-580008
8" × 8"
14" × 14"
5.0
RC o SQ-580009
9" × 9"
15" × 15"
5.6
RC o SQ-580010
10" × 10"
16" × 16"
6.3
RC o SQ-580012
12" × 12"
18" × 18"
7.6
RC o SQ-580014
14" × 14"
20" × 20"
9.1
RC o SQ-580016
16" × 16"
22" × 22"
10.7
RC o SQ-580018
18" × 18"
24" × 24"
12.4
RC o SQ-580020
20" × 20"
26" × 26"
14.2
RC o SQ-580024
24" × 24"
30" × 30"
18.2
RC o SQ-580030
30" × 30"
36" × 36"
24.9
RC o SQ-580036
36" × 36"
42" × 42"
32.7
RC o SQ-580042
42" × 42"
48" × 48"
41.5
RC o SQ-580048
48" × 48"
54" × 54"
51.3
RC o SQ-580608
6" × 8"
12" × 14"
4.5
RC o SQ-580612
6" × 12"
12" × 18"
5.5
RC o SQ-580618
6" × 18"
12" × 24"
7.1
RC o SQ-580624
6" × 24"
12" × 30"
8.8
RC o SQ-580812
8" × 12"
14" × 18"
6.2
RC o SQ-580818
8" × 18"
14" × 24"
8.0
RC o SQ-580824
8" × 24"
14" × 30"
9.8
RC o SQ-580930
9" × 30"
15" × 36"
12.2
RC o SQ-581016
10" × 16"
16" × 22"
8.2
RC o SQ-581018
10" × 18"
16" × 24"
8.9
RC o SQ-581024
10" × 24"
16" × 30"
10.8
RC o SQ-581036
10" × 36"
16" × 42"
14.8
SQ or SQ-581216
12" × 16"
18" × 22"
9.0
RC o SQ-581218
12" × 18"
18" × 24"
9.8
RC o SQ-581224
12" × 24"
18" × 30"
11.9
RC o SQ-581230
12" × 30"
18" × 36"
14.0
RC o SQ-581236
12" × 36"
18" × 42"
16.2
RC o SQ-581248
12" × 48"
18" × 54"
20.4
RC o SQ-581250
12" × 50"
20" × 58"
21.1
RC o SQ-581418
14" × 18"
20" × 24"
10.6
RC o SQ-581424
14" × 24"
20" × 30"
13.0
RC o SQ-581430
14" × 30"
20" × 36"
15.2
RC o SQ-581436
14" × 36"
20" × 42"
17.5
RC o SQ-581448
14" × 48"
20" × 54"
22.1
RC o SQ-581618
16" × 18"
22" × 24"
11.5
RC o SQ-581624
16" × 24"
22" × 30"
14.0
RC o SQ-581630
16" × 30"
22" × 36"
16.5
RC o SQ-581636
16" × 36"
22" × 42"
18.9
RC o SQ-581648
16" × 48"
22" × 54"
23.8
RC o SQ-581820
18" × 20"
24" × 26"
13.3
RC o SQ-581824
18" × 24"
24" × 30"
15.0
RC o SQ-581830
18" × 30"
24" × 36"
17.6
RC o SQ-581832
18" × 32"
24" × 38"
18.5
RC o SQ-581836
18" × 36"
24" × 42"
20.3
RC o SQ-581848
18" × 48"
24" × 54"
25.5
RC o SQ-581860
18" × 60"
26" × 68"
30.8
RC o SQ-581872
18" × 72"
26" × 80"
36.0
RC o SQ-582024
20" × 24"
26" × 30"
16.2
RC o SQ-582030
20" × 30"
26" × 30"
18.9
RC o SQ-582032
20" × 32"
26" × 38"
19.8
RC o SQ-582036
20" × 36"
26" × 42"
21.7
RC o SQ-582040
20" × 40"
26" × 46"
23.5
RC o SQ-582042
20" × 42"
26" × 48"
24.5
RC o SQ-582048
20" × 48"
26" × 54"
27.3
RC o SQ-582224
22" × 24"
28" × 30"
17.1
RC o SQ-582230
22" × 30"
28" × 36"
20.1
RC o SQ-582232
22" × 32"
28" × 38"
21.1
RC o SQ-582236
22" × 36"
28" × 42"
23.0
RC o SQ-582240
22" × 40"
28" × 46"
25.0
RC o SQ-582430
24" × 30"
30" × 36"
21.3
RC o SQ-582436
24" × 36"
30" × 42"
24.4
Artículo nro.
Tamaño
Tapa
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
RC o SQ-582440
24" × 40"
30" × 46"
26.5
RC o SQ-582442
24" × 42"
30" × 48"
27.5
RC o SQ-582444
24" × 44"
30"× 50"
28.6
RC o SQ-582448
24" × 48"
30" × 54"
30.7
RC o SQ-582460
24" × 60"
32" × 68"
37.0
RC o SQ-582462
24" × 62"
32" × 70"
38.0
RC o SQ-582466
24" × 66"
32" × 74"
40.1
RC o SQ-582472
24" × 72"
32" × 80"
43.2
RC o SQ-582478
24" × 78"
32" × 86"
46.3
RC o SQ-582484
24" × 84"
32" × 92"
49.5
RC o SQ-583032
30" × 32"
36" × 38"
26.1
RC o SQ-583034
30" × 34"
36" × 40"
27.3
RC o SQ-583036
30" × 36"
36" × 42"
28.6
RC o SQ-583040
30" × 40"
36" × 46"
31.0
RC o SQ-583042
30" × 42"
36" × 48"
32.2
RC o SQ-583046
30" × 46"
36" × 52"
34.6
RC o SQ-583048
30" × 48"
36" × 54"
35.8
RC o SQ-583060
30" × 60"
38" × 68"
43.1
RC o SQ-583072
30" × 72"
38" × 80"
50.4
RC o SQ-583078
30" × 78"
38" × 86"
54.0
RC o SQ-583084
30" × 84"
38" × 92"
57.6
RC o SQ-583240
32" × 40"
38" × 46"
32.5
RC o SQ-583242
32" × 42"
38" × 48"
33.7
RC o SQ-583244
32" × 44"
38" × 50"
35.0
RC o SQ-583248
32" × 48"
38" × 54"
37.5
RC o SQ-583260
32" × 60"
40" × 68"
45.2
RC o SQ-583440
34" × 40"
40" × 46"
34.0
RC o SQ-583442
34" × 42"
40" × 48"
35.3
RC o SQ-583444
34" × 44"
40" × 50"
36.6
RC o SQ-583446
34" × 46"
40" × 52"
37.9
RC o SQ-583448
34" × 48"
40" × 54"
39.3
RC o SQ-583460
34" × 60"
42" × 68"
47.2
RC o SQ-583476
34" × 76"
42" × 84"
57.8
RC o SQ-583638
36" × 38"
40" × 44"
34.1
RC o SQ-583640
36" × 40"
42" × 46"
35.5
RC o SQ-583642
36" × 42"
42" ×48"
36.8
RC o SQ-583644
36" × 44"
42" × 50"
38.2
RC o SQ-583648
36" × 48"
42" × 54"
41.0
RC o SQ-583660
36" × 60"
44" × 68"
49.3
RC o SQ-583672
36" × 72"
44" × 80"
57.6
RC o SQ-583846
38" × 46"
44" × 52"
41.2
RC o SQ-583848
38" × 48"
44" × 54"
42.7
RC o SQ-583860
38" × 60"
46"× 68"
51.3
RC o SQ-584042
40" × 42"
46" × 48"
40.0
RC o SQ-584044
40" × 44"
46" × 50"
41.4
RC o SQ-584048
40" × 48"
46" × 54"
44.4
RC o SQ-584060
40" × 60"
48" × 68"
53.4
RC o SQ-584078
40" × 78"
48" × 86"
66.8
RC o SQ-584084
40" × 84"
48" × 92"
71.3
RC o SQ-584252
42" × 52"
50" × 60"
49.2
RC o SQ-584260
42" × 60"
50" × 68"
55.4
RC o SQ-584448
44" × 48"
50" × 54"
47.9
RC o SQ-584460
44" × 60"
52" × 68"
57.5
RC o SQ-584472
44" × 72"
52" × 80"
67.1
RC o SQ-584478
44" × 78"
52" × 86"
72.0
RC o SQ-584660
46" × 60"
54" × 68"
59.6
RC o SQ-584672
46" × 72"
54" × 80"
69.5
RC o SQ-584678
46" × 78"
54" × 86"
74.5
RC o SQ-584852
48" × 52"
56" × 60"
54.7
RC o SQ-584854
48" × 54"
56" × 62"
56.4
RC o SQ-584860
48" × 60"
56" × 68"
61.6
RC o SQ-584866
48" × 66"
56" × 74"
66.7
RC o SQ-584872
48" × 72"
56" × 80"
71.9
RC o SQ-584884
48" × 84"
56" × 92"
82.2

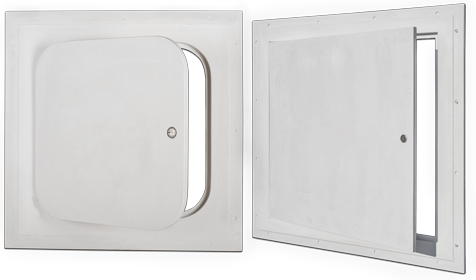

Con bisagras
Cerrojo con ranura
o cerrojo con llave
Arriba
CON BISAGRAS - ESQUINAS CURVAS (HG-RC-58xxxx)
CON BISAGRAS - ESQUINAS CUADRADAS (HG-SQ-58xxxx)
Artículo nro.
Tamaño
con bisagras
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
HG-(RC o SQ)-580006
6" × 6"
12" × 12"
4.4
HG-(RC o SQ)-580008
8" × 8"
14" × 14"
5.8
HG-(RC o SQ)-580009
9" × 9"
15" × 15"
6.5
HG-(RC o SQ)-580010
10" × 10"
16" × 16"
7.2
HG-(RC o SQ)-580012
12" × 12"
18" × 18"
8.7
HG-(RC o SQ)-580014
14" × 14"
20" × 20"
10.4
HG-(RC o SQ)-580016
16" × 16"
22" × 22"
12.1
HG-(RC o SQ)-580018
18" × 18"
24" × 24"
14.0
HG-(RC o SQ)-580020
20" × 20"
26" × 26"
16.0
HG-(RC o SQ)-580024
24" × 24"
30" × 30"
20.3
HG-(RC o SQ)-580030
30" × 30"
36" × 36"
27.7
HG-(RC o SQ)-580036
36" × 36"
42" × 42"
35.9
HG-(RC o SQ)-580042
42" × 42"
48" × 48"
45.3
HG-(RC o SQ)-580048
48" × 48"
54" × 54"
55.6
HG-(RC o SQ)-580608
6" × 8"
12" × 14"
5.2
HG-(RC o SQ)-580612
6" × 12"
12" × 18"
6.6
HG-(RC o SQ)-580618
6" × 18"
12" × 24"
8.8
HG-(RC o SQ)-580624
6" × 24"
12" × 30"
10.9
HG-(RC o SQ)-580812
8" × 12"
14" × 18"
7.3
HG-(RC o SQ)-580818
8" × 18"
14" × 24"
9.6
HG-(RC o SQ)-580824
8" × 24"
14" × 30"
12.0
HG-(RC o SQ)-580930
9" × 30"
15" × 36"
14.9
HG-(RC o SQ)-581016
10" × 16"
16" × 22"
9.7
HG-(RC o SQ)-581018
10" × 18"
16" × 24"
10.5
HG-(RC o SQ)-581024
10" × 24"
16" × 30"
13.0
HG-(RC o SQ)-581036
10" × 36"
16" × 42"
18.0
HG-(RC o SQ)-581216
12" × 16"
18" × 22"
10.5
HG-(RC o SQ)-581218
12" × 18"
18" × 24"
11.4
HG-(RC o SQ)-581224
12" × 24"
18" × 30"
14.0
HG-(RC o SQ)-581230
12" × 30"
18" × 36"
16.7
HG-(RC o SQ)-581236
12" × 36"
18" × 42"
19.4
HG-(RC o SQ)-581248
12" × 48"
18" × 54"
24.4
HG-(RC o SQ)-581250
12" × 50"
18" × 56"
25.6
HG-(RC o SQ)-581418
14" × 18"
20" × 24"
12.3
HG-(RC o SQ)-581424
14" × 24"
20" × 30"
15.1
HG-(RC o SQ)-581430
14" × 30"
20" × 36"
17.9
HG-(RC o SQ)-581436
14" × 36"
20" × 42"
20.8
HG-(RC o SQ)-581448
14" × 48"
20" × 54"
26.4
HG-(RC o SQ)-581618
16" × 18"
22" × 24"
13.1
HG-(RC o SQ)-581624
16" × 24"
22" × 30"
16.1
HG-(RC o SQ)-581630
16" × 30"
22" × 36"
19.1
HG-(RC o SQ)-581636
16" × 36"
22" × 42"
22.1
HG-(RC o SQ)-581648
16" × 48"
22" × 54"
28.1
HG-(RC o SQ)-581820
18" × 20"
24" × 26"
15.1
HG-(RC o SQ)-581824
18" × 24"
24" × 30"
17.2
HG-(RC o SQ)-581830
18" × 30"
24" × 36"
20.3
HG-(RC o SQ)-581832
18" × 32"
24" × 38"
21.4
HG-(RC o SQ)-581836
18" × 36"
24" × 42"
23.5
HG-(RC o SQ)-581848
18" × 48"
24" × 54"
29.9
HG-(RC o SQ)-581860
18" × 60"
26" × 68"
36.2
HG-(RC o SQ)-581872
18" × 72"
26" × 80"
42.5
HG-(RC o SQ)-582024
20" × 24"
26" × 30"
18.2
HG-(RC o SQ)-582030
20" × 30"
26" × 36"
21.6
HG-(RC o SQ)-582032
20" × 32"
26" × 38"
22.7
HG-(RC o SQ)-582036
20" × 36"
26" × 42"
24.9
HG-(RC o SQ)-582040
20" × 40"
26" × 46"
27.1
HG-(RC o SQ)-582042
20" × 42"
26" × 48"
28.2
HG-(RC o SQ)-582048
20" × 48"
26" × 54"
31.6
HG-(RC o SQ)-582224
22" × 24"
28" × 30"
19.3
HG-(RC o SQ)-582230
22" × 30"
28" × 36"
22.8
Artículo nro.
Tamaño
con bisagras
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
HG-(RC o SQ)-582232
22" × 32"
28" × 38"
23.9
HG-(RC o SQ)-582236
22" × 36"
28" × 42"
26.3
HG-(RC o SQ)-582240
22" × 40"
28" × 46"
28.6
HG-(RC o SQ)-582430
24" × 30"
30" × 36"
24.0
HG-(RC o SQ)-582436
24" × 36"
30" × 42"
27.7
HG-(RC o SQ)-582440
24" × 40"
30" × 46"
30.1
HG-(RC o SQ)-582442
24" × 42"
30" × 48"
31.3
HG-(RC o SQ)-582444
24" × 44"
30" × 50"
32.6
HG-(RC o SQ)-582448
24" × 48"
30" × 54"
35.0
HG-(RC o SQ)-582460
24" × 60"
32" × 68"
42.3
HG-(RC o SQ)-582462
24" × 62"
32" × 70"
43.6
HG-(RC o SQ)-582466
24" × 66"
32" × 74"
46.0
HG-(RC o SQ)-582472
24" × 72"
32" × 80"
49.7
HG-(RC o SQ)-582478
24" × 78"
32" × 86"
53.4
HG-(RC o SQ)-582484
24" × 84"
32" × 92"
60.0
HG-(RC o SQ)-583032
30" × 32"
36" × 38"
29.0
HG-(RC o SQ)-583034
30" × 34"
36" × 40"
30.4
HG-(RC o SQ)-583036
30" × 36"
36" × 42"
31.8
HG-(RC o SQ)-583040
30" × 40"
36" × 46"
34.6
HG-(RC o SQ)-583042
30" × 42"
36" × 48"
36.0
HG-(RC o SQ)-583046
30" × 46"
36" × 52"
38.8
HG-(RC o SQ)-583048
30" × 48"
36" × 54"
40.2
HG-(RC o SQ)-583060
30" × 60"
38" × 68"
48.5
HG-(RC o SQ)-583072
30" × 72"
38" × 80"
56.9
HG-(RC o SQ)-583078
30" × 78"
38" × 86"
61.0
HG-(RC o SQ)-583084
30" × 84"
38" × 92"
65.2
HG-(RC o SQ)-583240
32" × 40"
38" × 46"
36.1
HG-(RC o SQ)-583242
32" × 42"
38" × 48"
37.5
HG-(RC o SQ)-583244
32" × 44"
38" × 50"
39.0
HG-(RC o SQ)-583248
32" × 48"
38" × 54"
41.9
HG-(RC o SQ)-583260
32" × 60"
40" × 68"
50.6
HG-(RC o SQ)-583440
34" × 40"
40" × 46"
37.6
HG-(RC o SQ)-583442
34" × 42"
40" × 48"
39.1
HG-(RC o SQ)-583444
34" × 44"
40" × 50"
40.6
HG-(RC o SQ)-583446
34" × 46"
40" × 52"
42.1
HG-(RC o SQ)-583448
34" × 48"
40" × 54"
43.6
HG-(RC o SQ)-583460
34" × 60"
42" × 68"
52.6
HG-(RC o SQ)-583476
34" × 76"
42" × 84"
64.6
HG-(RC o SQ)-583638
36" × 38"
42" × 44"
37.5
HG-(RC o SQ)-583640
36" × 40"
42" × 46"
39.1
HG-(RC o SQ)-583642
36" × 42"
42" × 48"
40.6
HG-(RC o SQ)-583644
36" × 44"
42" × 50"
42.2
HG-(RC o SQ)-583648
36" × 48"
42" × 54"
45.3
HG-(RC o SQ)-583660
36" × 60"
44" × 68"
54.7
HG-(RC o SQ)-583672
36" × 72"
44" × 80"
64.0
HG-(RC o SQ)-583846
38" × 46"
44" × 52"
45.4
HG-(RC o SQ)-583848
38" × 48"
44" × 54"
47.0
HG-(RC o SQ)-583860
38" × 60"
46" × 68"
56.7
HG-(RC o SQ)-584042
40" × 42"
46" × 48"
43.7
HG-(RC o SQ)-584044
40" × 44"
46" × 50"
45.4
HG-(RC o SQ)-584048
40" × 48"
46" × 54"
48.7
HG-(RC o SQ)-584060
40" × 60"
48" × 68"
58.8
HG-(RC o SQ)-584078
40" × 78"
48" × 86"
73.8
HG-(RC o SQ)-584084
40" × 84"
48" × 92"
78.8
HG-(RC o SQ)-584252
42" × 52"
48" × 58"
53.9
HG-(RC o SQ)-584260
42" × 60"
50" × 68"
60.8
HG-(RC o SQ)-584448
44" × 48"
50" × 54"
52.2
HG-(RC o SQ)-584460
44" × 60"
52" × 68"
62.9
HG-(RC o SQ)-584472
44" × 72"
52" × 80"
73.52
HG-(RC o SQ)-584478
44" × 78"
52" × 86"
78.9

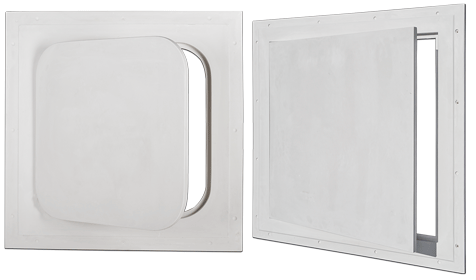

CON BISAGRAS
sistema de
Cierre a presión
arriba
CON BISAGRAS - ESQUINAS CURVAS (HG-RC-58xxxx-TL)
CON BISAGRAS - ESQUINAS CUADRADAS (HG-SQ-58xxxx-TL)
Artículo nro.
Tamaño
con bisagras
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
HG-(RC o SQ)-580006-TL
6" × 6"
12" × 12"
4.4
HG-(RC o SQ)-580008-TL
8" × 8"
14" × 14"
5.8
HG-(RC o SQ)-580009-TL
9" × 9"
15" × 15"
6.5
HG-(RC o SQ)-580010-TL
10" × 10"
16" × 16"
7.2
HG-(RC o SQ)-580012-TL
12" × 12"
18" × 18"
8.7
HG-(RC o SQ)-580014-TL
14" × 14"
20" × 20"
10.4
HG-(RC o SQ)-580016-TL
16" × 16"
22" × 22"
12.1
HG-(RC o SQ)-580018-TL
18" × 18"
24" × 24"
14.0
HG-(RC o SQ)-580020-TL
20" × 20"
26" × 26"
16.0
HG-(RC o SQ)-580608-TL
6" × 8"
12" × 14"
5.2
HG-(RC o SQ)-580612-TL
6" × 12"
12" × 18"
6.6
HG-(RC o SQ)-580618-TL
6" × 18"
12" × 24"
8.8
HG-(RC o SQ)-580624-TL
6" × 24"
12" × 30"
10.9
HG-(RC o SQ)-580812-TL
8" × 12"
14" × 18"
7.3
HG-(RC o SQ)-580818-TL
8" × 18"
14" × 24"
9.6
Artículo nro.
Tamaño
con bisagras
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
HG-(RC o SQ)-580824-TL
8" × 24"
14" × 30"
12.0
HG-(RC o SQ)-580930-TL
9" × 30"
15" × 36"
14.9
HG-(RC o SQ)-581016-TL
10" × 16"
16" × 22"
9.7
HG-(RC o SQ)-581018-TL
10" × 18"
16" × 24"
10.5
HG-(RC o SQ)-581024-TL
10" × 24"
16" × 30"
11.0
HG-(RC o SQ)-581036-TL
10" × 36"
16" × 42"
19.4
HG-(RC o SQ)-581216-TL
12" × 16"
18" × 22"
10.5
HG-(RC o SQ)-581218-TL
12" × 18"
18" × 24"
11.4
HG-(RC o SQ)-581224-TL
12" × 24"
18" × 30"
14.0
HG-(RC o SQ)-581230-TL
12" × 30"
18" × 36"
16.7
HG-(RC o SQ)-581418-TL
14" × 18"
20" × 24"
12.3
HG-(RC o SQ)-581424-TL
14" × 24"
20" × 30"
15.1
HG-(RC o SQ)-581618-TL
16" × 18"
22" × 24"
13.1
HG-(RC o SQ)-581624-TL
16" × 24"
22" × 30"
16.1
HG-(RC o SQ)-581820-TL
18" × 20"
24" × 26"
15.1
Tapa suelta
redonda
arriba
TAPA SUELTA REDONDA (RD-58xxxx)
Artículo nro.
Tamaño
de tapa
Medida aprox.
abertura
Peso
(lbs)
Diagrama
PDF
RD-580004
4" diámetro
10" × 10"
3.5
RD-580005
5" diámetro
11" × 11"
4.0
RD-580006
6" diámetro
12" × 12"
4.5
RD-580008
8" diámetro
14" × 14"
5.0
RD-580009
9" diámetro
15" × 15"
7.0
RD-580012
12" diámetro
18" × 18"
9.0
RD-580014
14" diámetro
20" × 20"
10.5
RD-580016
16" diámetro
22" × 22"
12.0
RD-580018
18" diámetro
24" × 24"
14.0
RD-580020
20" diámetro
26" × 26"
15.0
RD-580024
24" diámetro
30" × 30"
19.0
RD-580030
30" diámetro
36" × 36"
26.0
RD-580032
32" diámetro
38" × 38"
29.0
RD-580036
36" diámetro
42" × 42"
34.00
RD-580042
42" diámetro
48" × 48"
42.5
RD-580048
48" diámetro
54" × 54"
52.5
